PRODUCT OVERVIEW
Configuration overview

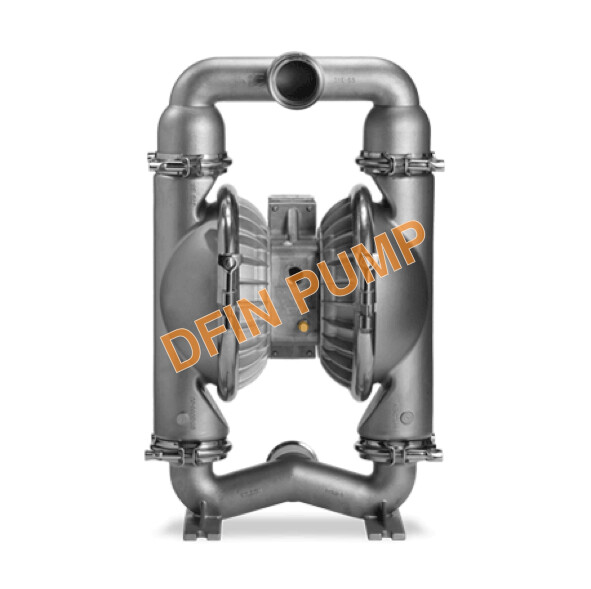

Product Overview
An industrial pump configuration organized by model, item number, construction and operating data for accurate selection and quotation.
Technical Parameters
- Item number: 08-15165
- Model / configuration: XPX8/SZAAA/FWL/FW/FW/0070
- Port size: 2"
- Construction: Stainless Steel
- Air system: Pro-Flo X™
- Maximum flow (GPM): 178
- Maximum flow (L/min): 675
- Air kit: 04-9988-99
- Wet kit: NME
Model and Configuration Guidance
Use the complete model string and item number when requesting a quotation. Pump materials, elastomers, connection standards and air-system options can vary between configurations.
Materials and Performance
Confirm chemical compatibility, solids size, temperature, suction conditions, discharge pressure and required flow before ordering. Published values are identification data and should not replace final application review.
Typical Applications
Chemical processing, water and wastewater, general industrial transfer and maintenance duties, subject to material compatibility and duty-point confirmation.
Selection Notes
Provide the liquid, concentration, temperature, viscosity, required flow, discharge pressure, suction arrangement, connection standard and installation environment. DFIN will confirm the suitable configuration.
Compatible Repair Kits
Air-end kit: 04-9988-99
Wet-end kit: NME
Maintenance and Ordering
Isolate the air supply and process line before service. Match replacement parts by item number whenever possible and confirm pump series, size and wetted materials before installation.
Request a Quotation
Send the full model, item number, quantity and destination country. Shanghai Dfin Pump Co., Ltd. will confirm configuration, availability and quotation details.
TECHNICAL DATA
Technical parameters
| Product Type | Pumps |
|---|---|
| Model / configuration | XPX8/SZAAA/FWL/FW/FW/0070 |
| Item number | 08-15165 |
| Port size | 2" |
| Air distribution system | Pro-Flo X™ |
| Wetted construction | Stainless Steel |
| Diaphragms | Sanitary Wil-Flex, Full stroke IPD |
| Valve balls | Sanitary Wil-Flex |
| Valve seats | Sanitary wil-Flex |
| Outer piston | None |
| Air chamber | Aluminum |
| Center block | Aluminum |
| Air valve | Aluminum |
| Maximum capacity (GPM) | 178 |
| Maximum capacity (L/min) | 675 |
| Weight (kg) | 53 |
SERVICE MATCHING
Repair kits and spare parts
04-9988-99
NME
Send the complete item number and nameplate when requesting service parts.
